Product Specifications
The following are detailed specifications about the Luminator Floodlight Kit in White by RAB Electric Lighting.
Our customer service team is available Monday through Friday from 7AM - 5PM, Saturdays from 9AM - 3PM and Sundays from 11AM - 4PM Pacific Time, excluding holidays at (800) 653-6556 to provide any information that is not listed on our website.
| Product Number: | P2720229 or 424096 |
| Manufacturer: | RAB Electric Lighting |
| Model Number: | LU300W |
| Collection: | Luminator |
| Manufacturer Finish: | White |
| Shade Color: | No Shade |
| Total Wattage: | 300 w. |
| Voltage Type: | Line Voltage |
| Dimmable: | With Standard Dimmer |
| Width: | 15.50 in. |
| Wattage Per Bulb: | 150 |
| Bulb Type: | Halogen |
| Bulb Shape: | PAR38 |
| Base Type: | Medium Screw (E26) |
| Number Of Bulbs: | 2 |
| Bulb Included: | No |
| Dark Sky: | No |
| ADA Compliant: | No |
| EnergyStar Compliant: | No |
| Material: | Polycarbonate |
| Security Type: | Flood |
| Shipping: | UPS Regular |
| Certification Agencies: | UL |
| Backplate Dimension: | 4.50 |
| Wet Location: | Yes |
| Damp Location: | Yes |
| Harsh Environ/Coastal: | Yes |
| Weight: | 1.20 lbs |
| Made In America: | No |
| Dusk To Dawn: | Yes |
| Motion Sensor: | Yes |
| Title 24: | No |
Product Description

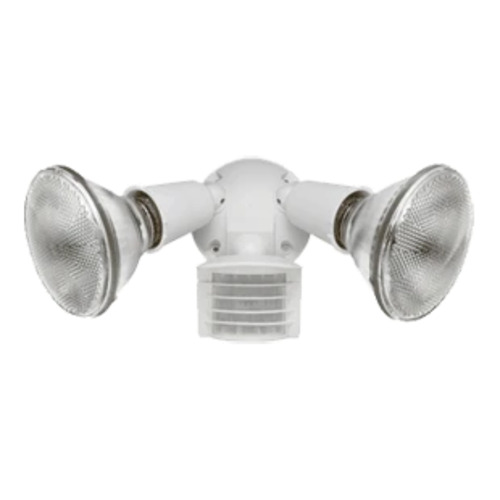

Luminator Floodlight Kit in White by RAB Electric Lighting
RAB Electric Lighting's Luminator Floodlight Kit is a robust and highly adaptable lighting solution designed for outdoor environments requiring enhanced security and illumination. This comprehensive kit includes a Luminator sensor, two weatherproof and corrosion-proof floodlights, and a round mounting plate, all pre-wired for straightforward installation.
Key features of this kit include the universal ball swivels on both the floods and sensor, which allow for easy, tool-less adjustment. This flexibility ensures that you can direct light exactly where it is needed, making it ideal for a wide range of applications such as illuminating walkways, driveways, or enhancing security around buildings. The lights are designed to accommodate lamps, which are not supplied with the kit, and have a substantial 300-watt switching capacity.
Additional functionalities include a manual override, which allows temporary manual operation of the lights, and a 110° double look down lens that provides a wide detection range. The kit is designed to withstand harsh conditions with its tough, vandal-resistant lens and grill that protect against damage and tampering.
The Luminator Floodlight Kit features the LS300, which fits standard 1/2'' threaded cover plates. Its 'two flip logic' prevents activation by momentary power outages, ensuring that the lights remain stable and reliable in their operation. The override function automatically resets to auto mode after 6 hours or at dawn, and no extra wiring is needed for this feature.
A built-in photo control deactivates the lights during daylight hours, conserving energy and reducing costs. This control is fully adjustable, allowing for 24-hour operation or customization according to specific needs. The entire assembly is made from tough, corrosion-resistant polycarbonate, ensuring durability and long-term use in challenging weather conditions.
RAB Electric Lighting's Luminator Floodlight Kit is an excellent choice for those seeking a durable, easy-to-install, and flexible lighting solution for outdoor security and utility lighting.
