Product Specifications
The following are detailed specifications about the 5-Inch Graphite LED Tube Architectural Pendant 3500K by WAC Lighting.
Our customer service team is available Monday through Friday from 7AM - 5PM, Saturdays from 9AM - 3PM and Sundays from 11AM - 4PM Pacific Time, excluding holidays at (800) 653-6556 to provide any information that is not listed on our website.
| Product Number: | P1307746 |
| Manufacturer: | WAC Lighting |
| Model Number: | DS-PD05-N35-GH |
| Collection: | Tube Architectural |
| Manufacturer Finish: | Graphite |
| Manufacturer Shade Color: | Graphite |
| Total Wattage: | 27 w. |
| Voltage Type: | Line Voltage |
| Voltage Input: | 120-277 v. |
| Average Rated Life1: | 60,000 hrs |
| Dimmable: | With Electronic Dimmer |
| Height: | 6.88 in. |
| Minimum Hanging Height: | 6.75 in. |
| Maximum Hanging Height: | 54.75 in. |
| Width: | 4.88 in. |
| Length: | 4.88 in. |
| Depth: | 28.62 in. |
| Wattage Per Bulb: | 27 |
| Bulb Type: | LED |
| Base Type: | Integrated LED |
| Number Of Bulbs: | 1 |
| Bulb Included: | Yes |
| Beam Spread: | Narrow Flood |
| Beam Spread Degree: | 25 |
| EnergyStar Compliant: | Yes |
| Shade Material: | Metal, Glass |
| Material: | Cast Aluminum |
| Shipping: | UPS Regular |
| Certification Agencies: | UL |
| Canopy Dimension: | 5 |
| Downrods: | 2 24-inch |
| Wet Location: | Yes |
| Damp Location: | Yes |
| Harsh Environ/Coastal: | No |
| Shade Direction: | Down |
| Hanging Method: | Stem Hung |
| Weight: | 7.30 lbs |
| Kelvin Temperature: | 3500 |
| Lumens Per Bulb: | 2255 |
| Color Rendering Index: | 85 |
| Made In America: | No |
| Dusk To Dawn: | No |
| Title 24: | No |
| Total Lumens: | 2255.0 |
Product Description

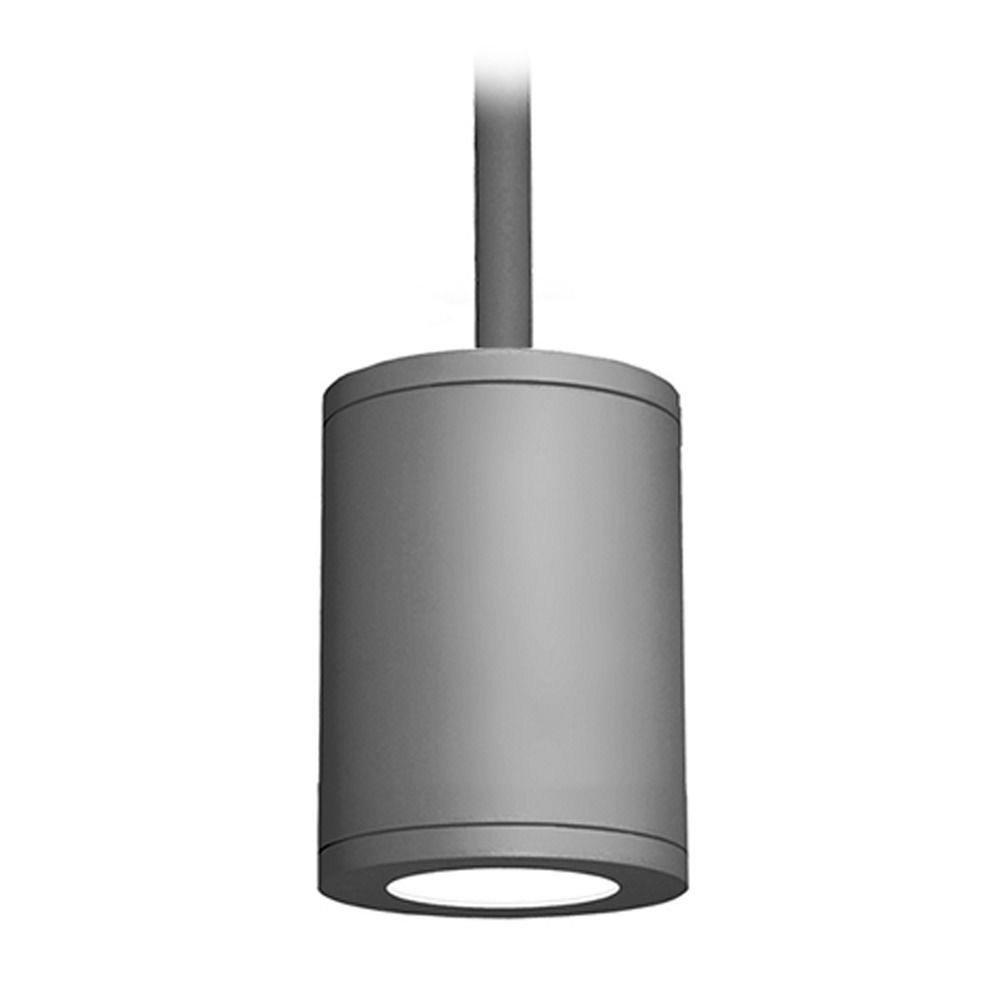

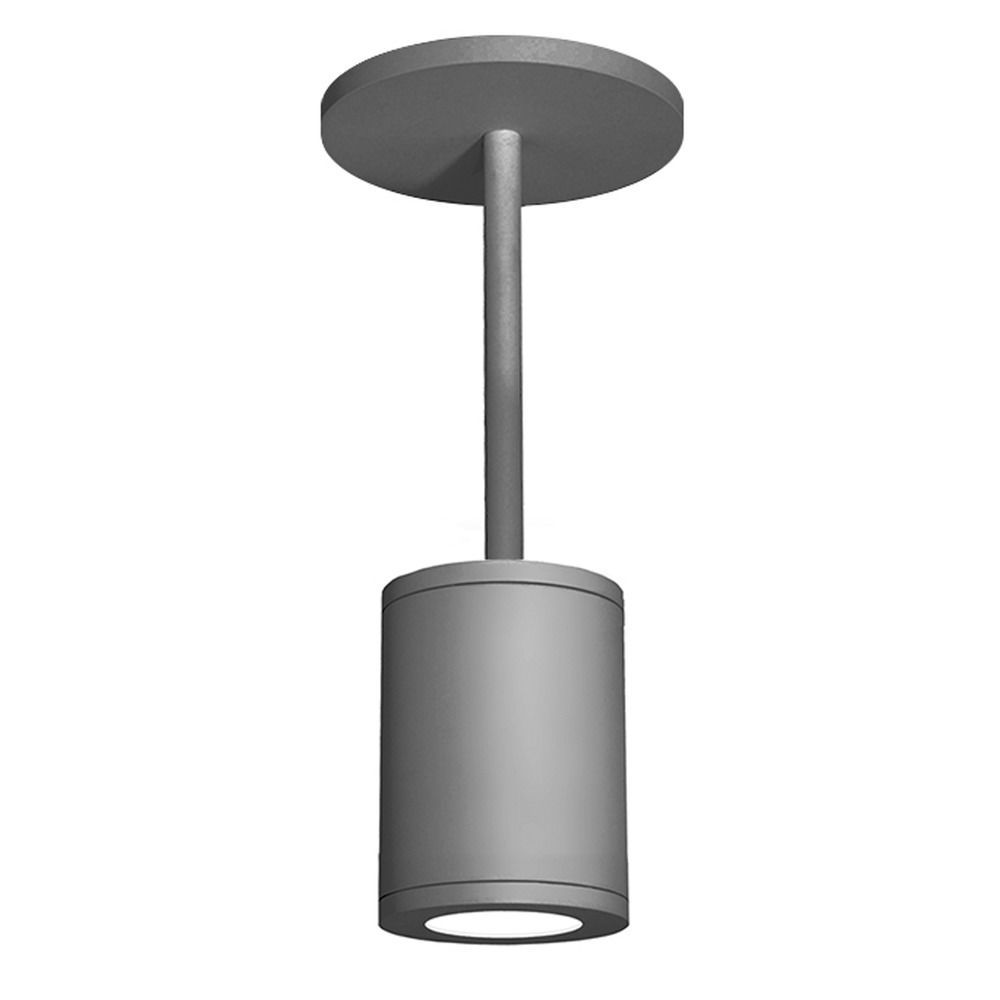

5-Inch Graphite LED Tube Architectural Pendant 3500K by WAC Lighting

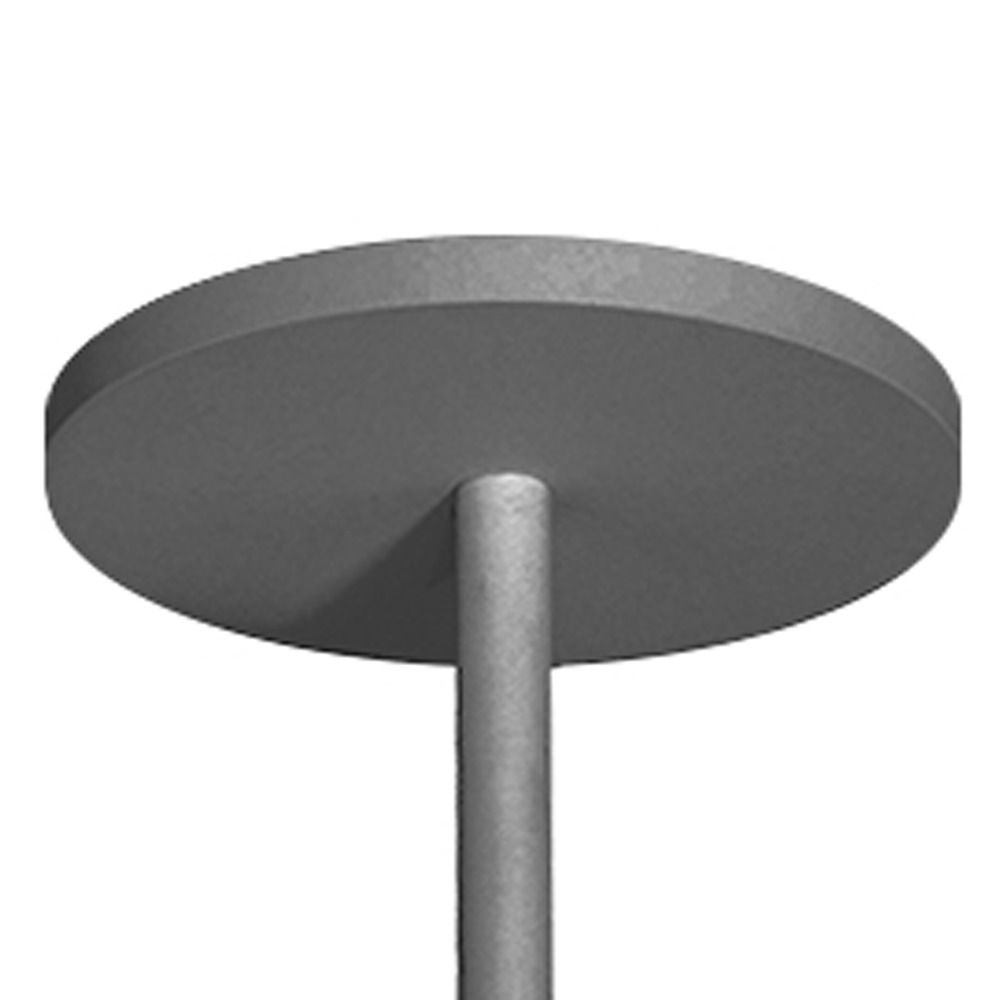

Tube Architectural - Pendant. Precise engineering using the latest energy efficient LED technology with a built-in reflector for superior optics; An appealing cylindrical profile perfect for accent and wall wash lighting. Pendant includes Hang Swivel Canopy to accommodate slope ceiling applications with two 24 inch field cuttable rods and 120 inches of wire for additional downrods (DS-PDX24 sold separately) up to 10ft total.
Approved for wet / damp location use as defined by the National Electric Code. Please consult your local electrical code for details.
This fixture meets strict Energy Star Qualified requirements. Energy Star Qualified is a government-backed program dedicated to promoting products that reduce greenhouse gas emissions. This organization assists individuals and businesses in the identification of energy efficient products. Visit www.energystar.gov for more information.
LED light fixtures and bulbs are environmentally friendly, low cost to run, and low maintenance.
