Don't forget everything!
Deako lighting components work together, to install a switch you need a backplate and faceplate and if you want remote access you will need to purchase a Deako bridge.
If you want to make sure you have all you need, check out our simple buying guide and you can add all the components for a complete system.
Write A Review
Product Specifications
The following are detailed specifications about the 25W T5 48-Inch 5CCT Ballast Bypass 120-347V LED Bulb by Satco Lighting.
Our customer service team is available Monday through Friday from 7AM - 5PM, Saturdays from 9AM - 3PM and Sundays from 11AM - 4PM Pacific Time, excluding holidays at (800) 653-6556 to provide any information that is not listed on our website.
| Product Number: | P2736160 |
| Manufacturer: | Satco Lighting |
| Model Number: | S11656 |
| Manufacturer Finish: | White |
| Total Wattage: | 25 w. |
| Voltage Type: | Line Voltage |
| Average Rated Life1: | 50,000 hrs |
| Width: | 0.88 in. |
| Length: | 45.8 in. |
| Wattage Per Bulb: | 25 |
| Bulb Type: | LED |
| Bulb Shape: | T5 |
| Base Type: | Fluorescent Miniature Bi-Pin (G5) |
| Bulb Color: | Frosted |
| Bulb Features: | Suitable for Enclosed Fixtures |
| Beam Spread Degree: | 160 |
| Material: | Plastic, Glass |
| Shipping: | UPS Regular |
| Certification Agencies: | UL, CUL |
| Wet Location: | No |
| Damp Location: | Yes |
| Weight: | 0.37 lbs |
| Kelvin Temperature: | 3000/3500/4000/5000/6500 |
| Lumens Per Bulb: | 3400 |
| Color Rendering Index: | 80 |
| Made In America: | No |
| Title 20: | Lawful for Sale in California |
Product Description

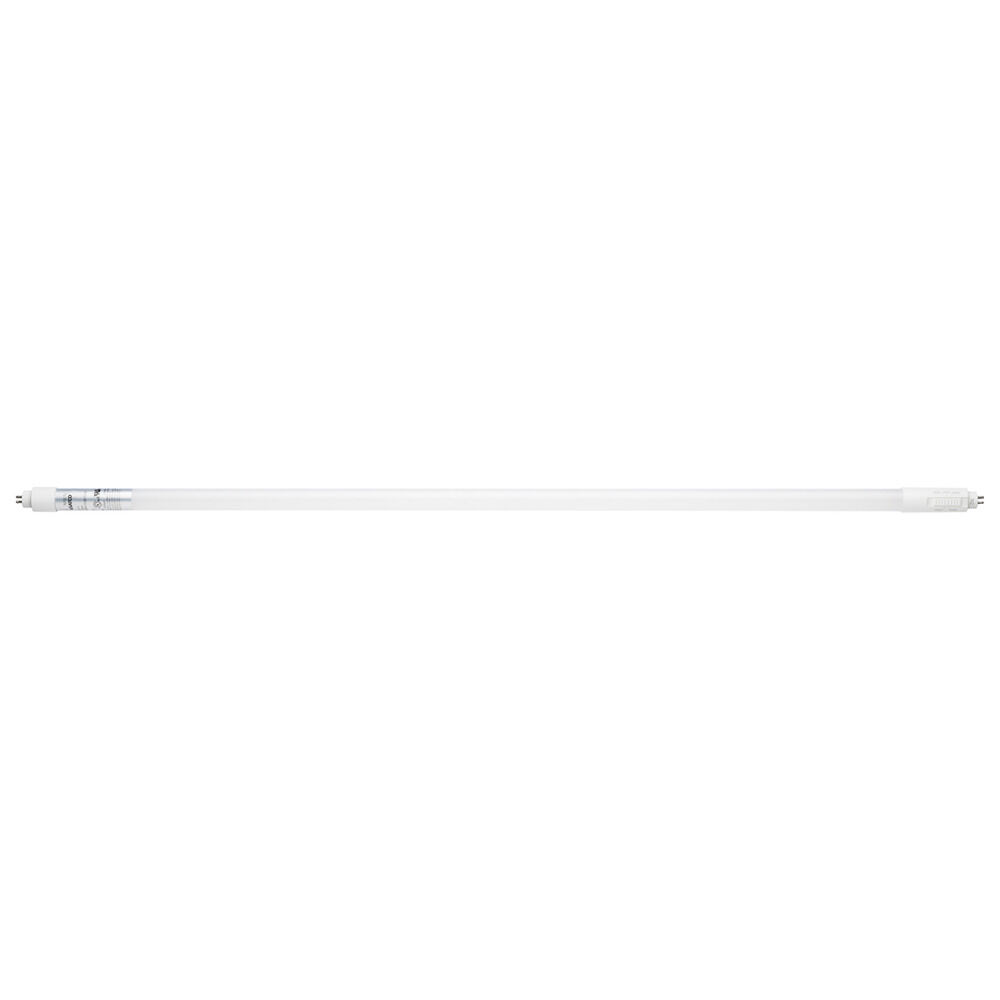

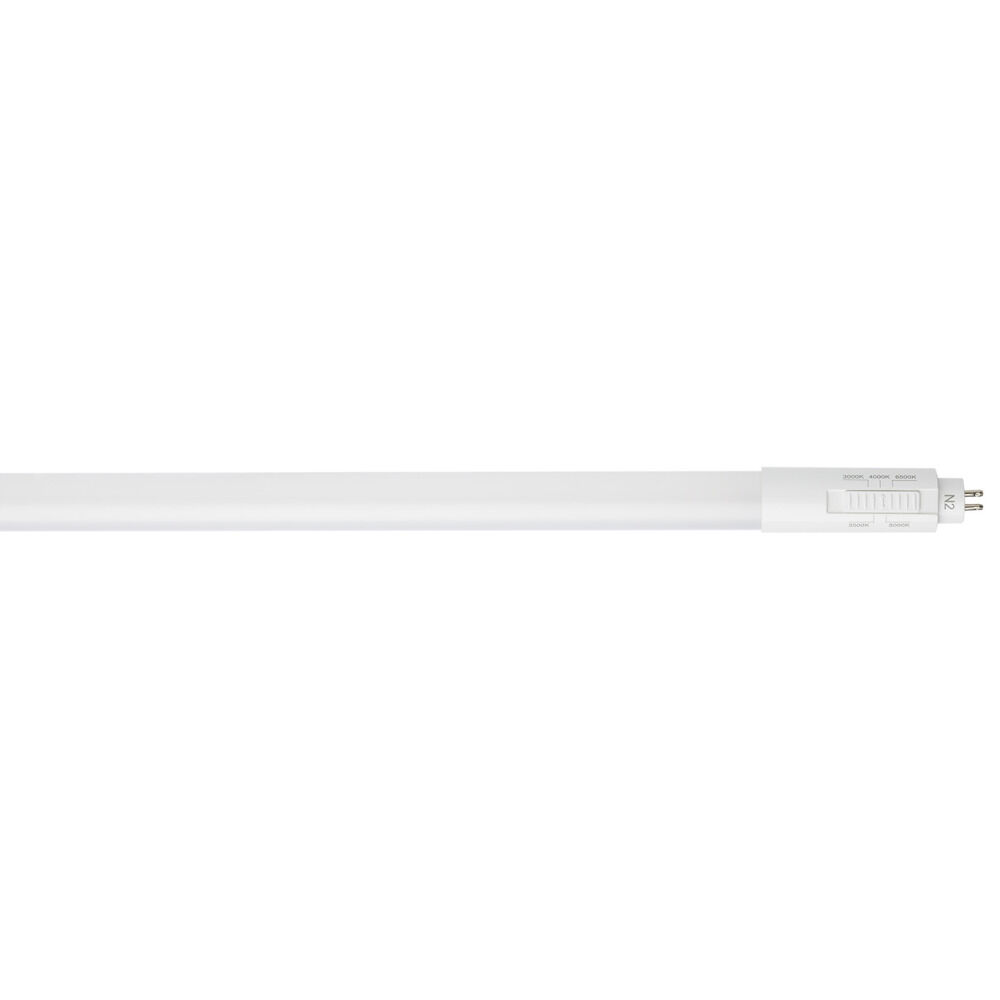

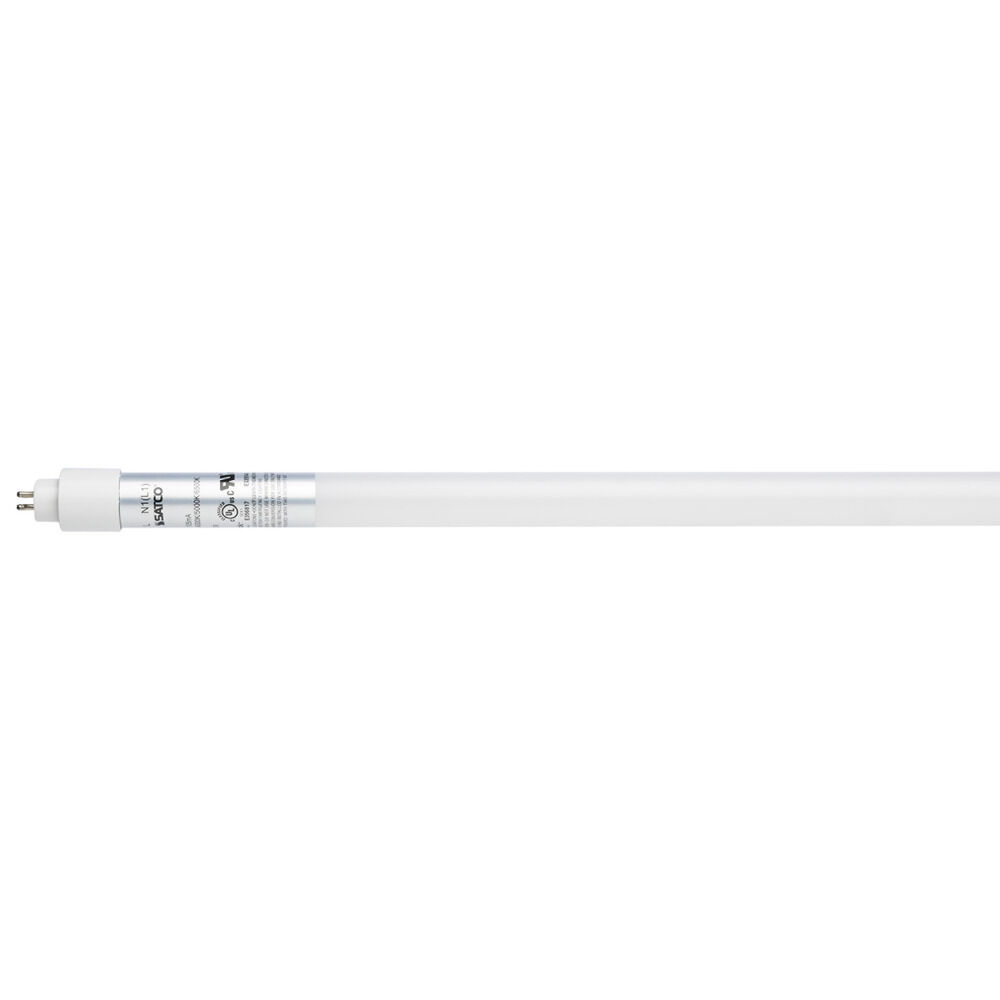

25W T5 48-Inch 5CCT Ballast Bypass 120-347V LED Bulb by Satco Lighting
The Satco Lighting 25W T5 48-Inch 5CCT LED Bulb delivers high-output, energy-efficient performance designed for both commercial and industrial applications. Built as a Type B ballast bypass lamp, it supports single- or double-ended wiring for installation flexibility and operates directly on 120347V systems, making it suitable for a wider range of projects. Its slim T5 profile with a G5 base provides a seamless replacement for traditional fluorescent tubes, while the PET-coated glass construction enhances safety and durability for long-term use.

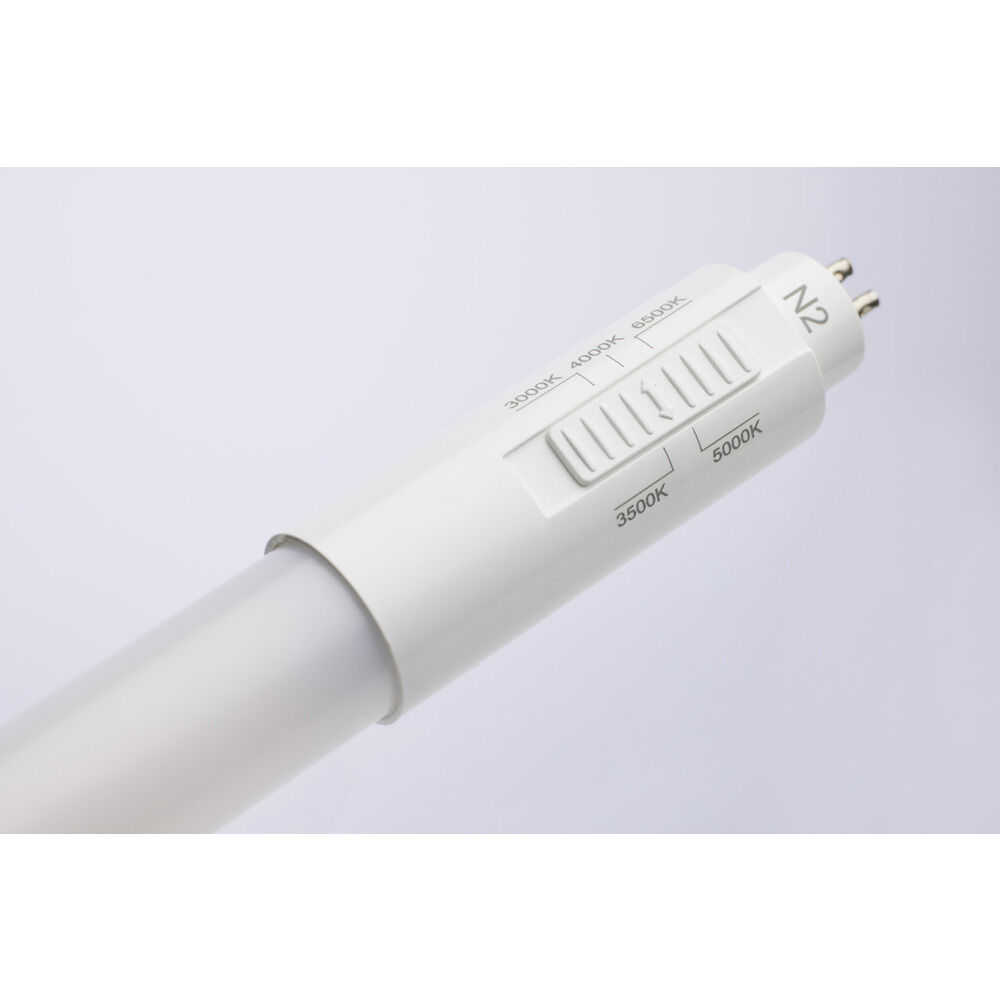

Equipped with five selectable color temperatures - 3000K, 3500K, 4000K, 5000K, and 6500K - this lamp adapts easily to varied lighting requirements, from warm, comfortable tones to bright daylight clarity. Producing up to 3600 lumens with a 160-degree beam spread, it ensures wide, even illumination, ideal for large spaces such as offices, classrooms, warehouses, workshops, and retail areas. With an 80+ CRI, it maintains natural and accurate color rendering across all CCT settings.
Engineered for longevity, this 48-inch LED tube delivers up to 50,000 hours of use, significantly reducing maintenance and replacement costs. Rated for use in enclosed fixtures and approved for damp locations, it provides reliable performance even in challenging environments. Combining strong lumen output, a broad operating voltage range, and durable construction, the Satco Lighting 25W T5 48-Inch 5CCT Ballast Bypass LED Bulb is a robust, efficient upgrade for demanding modern lighting applications.
