Don't forget everything!
Deako lighting components work together, to install a switch you need a backplate and faceplate and if you want remote access you will need to purchase a Deako bridge.
If you want to make sure you have all you need, check out our simple buying guide and you can add all the components for a complete system.
Write A Review
Product Specifications
The following are detailed specifications about the 20W PLL 5CCT Ballast Bypass 120-277V LED Light Bulb by Satco Lighting.
Our customer service team is available Monday through Friday from 7AM - 5PM, Saturdays from 9AM - 3PM and Sundays from 11AM - 4PM Pacific Time, excluding holidays at (800) 653-6556 to provide any information that is not listed on our website.
| Product Number: | P2736165 |
| Manufacturer: | Satco Lighting |
| Model Number: | S18423 |
| Manufacturer Finish: | White |
| Total Wattage: | 20 w. |
| Voltage Type: | Line Voltage |
| Voltage Input: | 120-277 v. |
| Average Rated Life1: | 50,000 hrs |
| Dimmable: | Non-Dimmable |

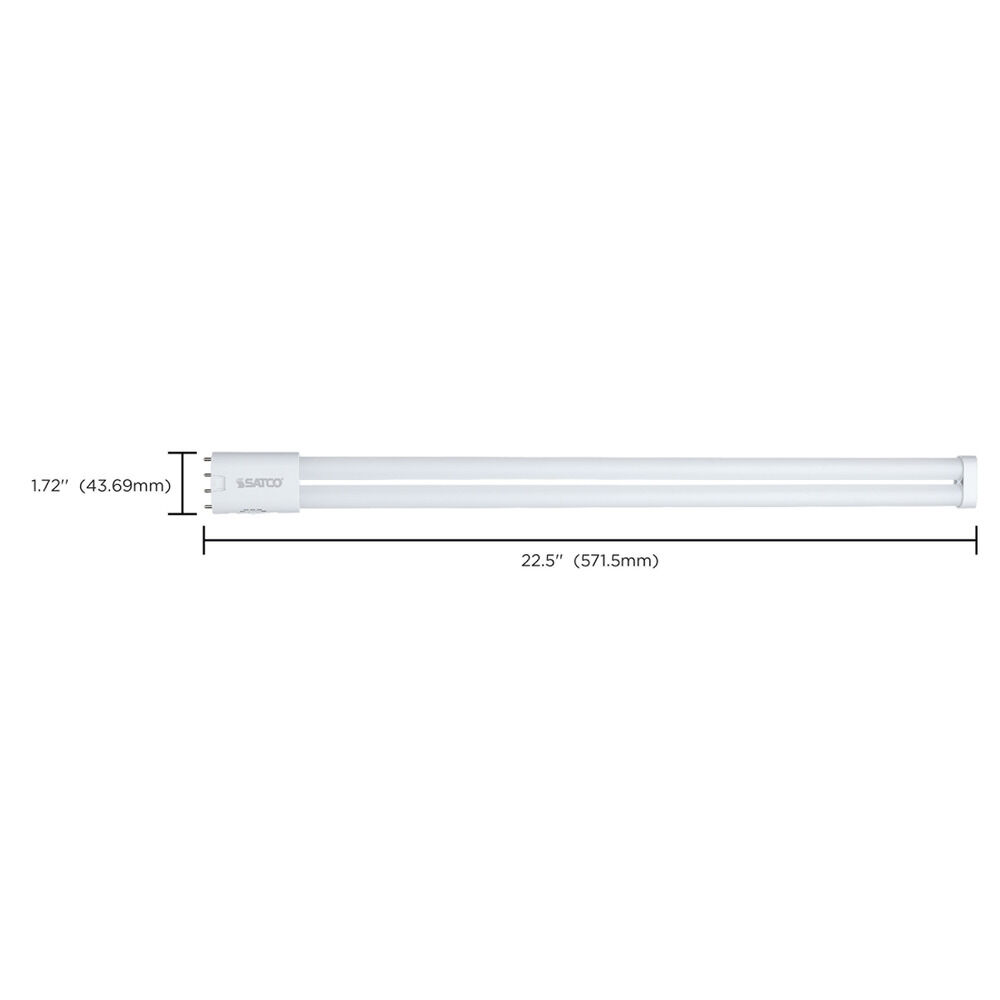

| Width: | 1.72 in. |
| Length: | 22.5 in. |
| Wattage Per Bulb: | 20 |
| Bulb Type: | LED |
| Bulb Shape: | Twin Tube |
| Base Type: | CFL/LED 4-Pin (2G11) |
| Bulb Color: | Frosted |
| Bulb Dimmable: | No |
| Beam Spread Degree: | 140 |
| Material: | Glass |
| Shipping: | UPS Regular |
| Certification Agencies: | UL, CUL |
| Wet Location: | No |
| Damp Location: | Yes |
| Weight: | 0.37 lbs |
| Kelvin Temperature: | 3000/3500/4000/5000/6500 |
| Lumens Per Bulb: | 2800 |
| Color Rendering Index: | 80 |
| Made In America: | No |
| Title 20: | Lawful for Sale in California |
Product Description

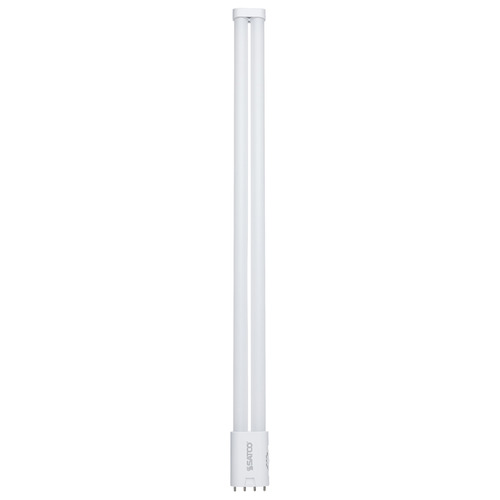

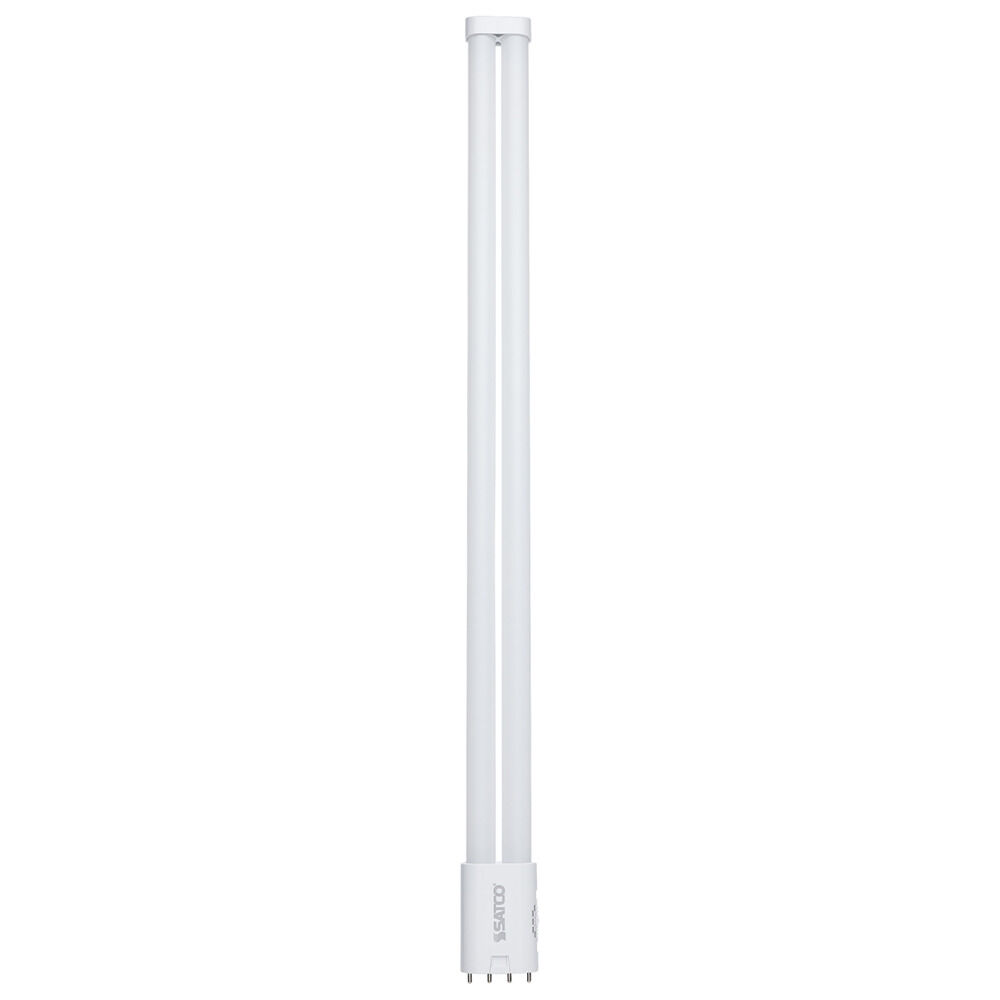

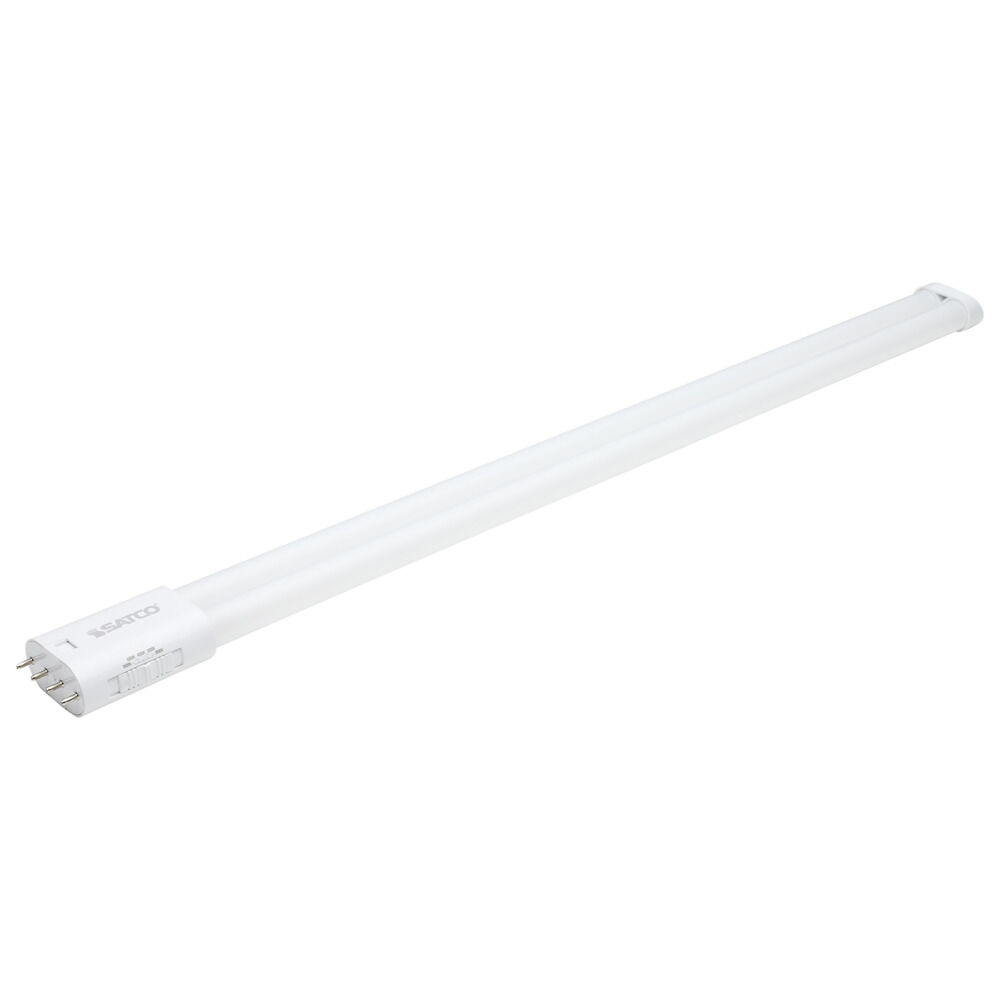

20W PLL 5CCT Ballast Bypass 120-277V LED Light Bulb by Satco Lighting
The Satco Lighting 20W PLL 5CCT LED Light Bulb delivers strong, energy-efficient illumination in a practical and durable design. Built as a Type B ballast bypass lamp, it operates directly on 120277V systems, removing the need for an external ballast and ensuring reliable performance. With its 2G11 base, this lamp is a direct retrofit for traditional PLL-style fluorescent bulbs, offering an easy transition to modern LED technology.

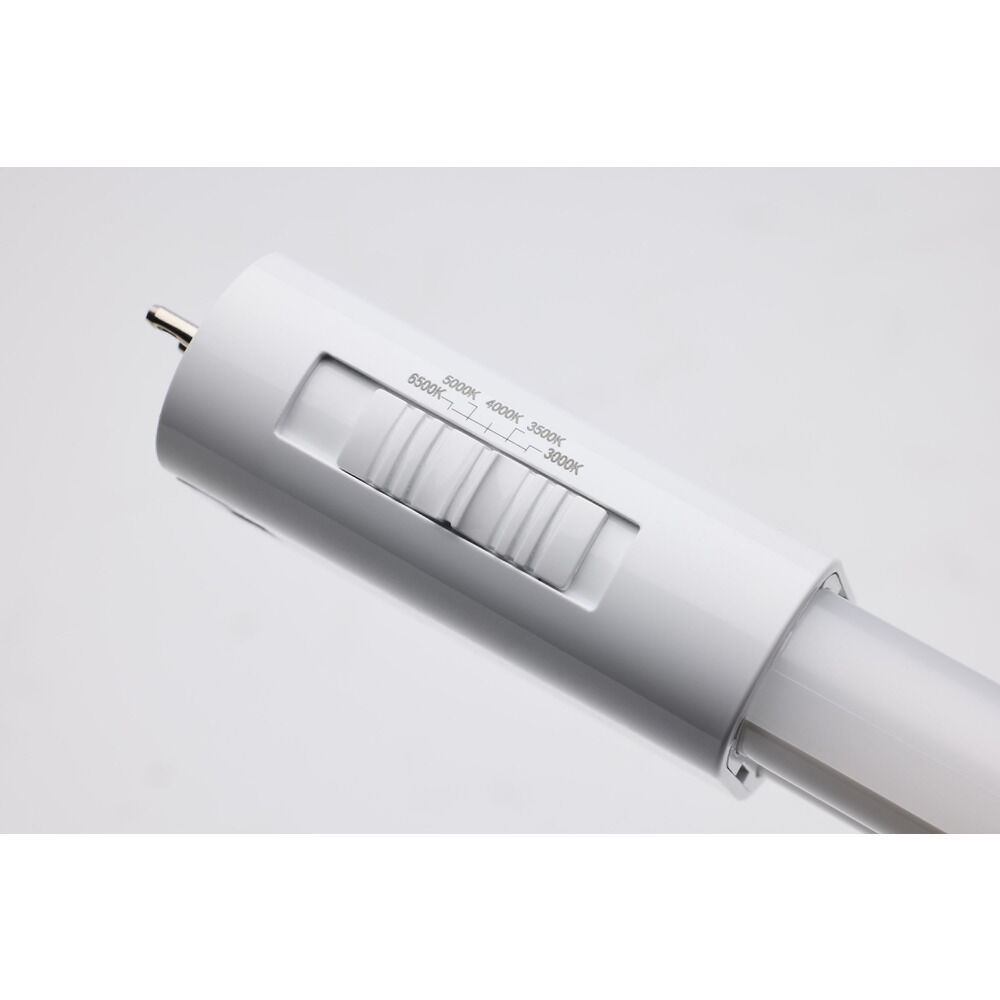

Equipped with five selectable color temperatures - 3000K, 3500K, 4000K, 5000K, and 6500K - this bulb adapts seamlessly to a variety of settings, from warm, comfortable tones to bright daylight clarity. At maximum output, it produces up to 2800 lumens with a 115-degree beam spread, providing bright, effective illumination for offices, classrooms, kitchens, workshops, and commercial environments. An 80+ CRI ensures natural and accurate color rendering across all light settings, enhancing visibility and detail.
Engineered for long life, this LED bulb delivers up to 50,000 hours of use, reducing maintenance and replacement needs. Non-dimmable for consistent performance, it is rated for safe use in enclosed fixtures and damp locations. Combining high lumen output, multi-color flexibility, and dependable operation, the Satco Lighting 20W PLL 5CCT Ballast Bypass LED Light Bulb is a powerful and efficient replacement for traditional fluorescent lamps.
